SA6629A-051SG      0.5 HP (600 RPM)
SA6629B-051SG      0.5 HP (1000 RPM)
SA6629C-051SG      0.5 HP (2400 RPM)
SA6629D-051SG      0.5 HP (3200 RPM)
SA6629E-051SG      0.5 HP (3800 RPM)
SA6629F-051SG      0.5 HP (5200 RPM)

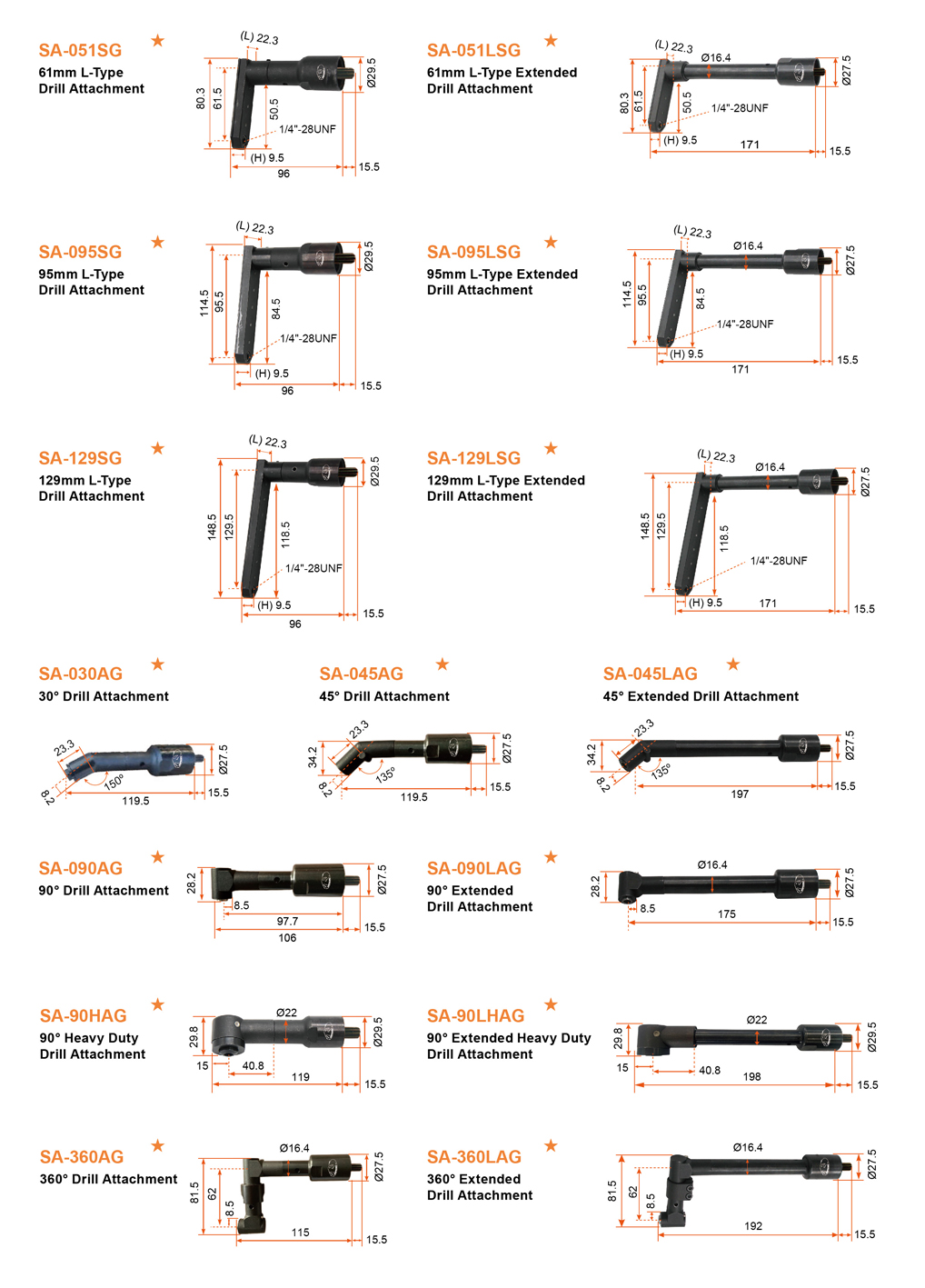

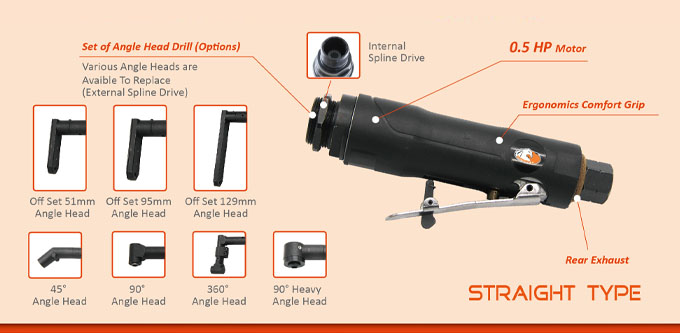

Straight Type Air Drill
w/ Off Set 61mm Angle Head

SA6629A-051LSG      0.5 HP (600 RPM)
SA6629B-051LSG      0.5 HP (1000 RPM)
SA6629C-051LSG      0.5 HP (2400 RPM)
SA6629D-051LSG      0.5 HP (3200 RPM)
SA6629E-051LSG      0.5 HP (3800 RPM)
SA6629F-051LSG      0.5 HP (5200 RPM)
Straight Type Air Drill
w/ Off Set 61mm Angle Head Extended

SA6629A-095SG      0.5 HP (600 RPM)
SA6629B-095SG      0.5 HP (1000 RPM)
SA6629C-095SG      0.5 HP (2400 RPM)
SA6629D-095SG      0.5 HP (3200 RPM)
SA6629E-095SG      0.5 HP (3800 RPM)
SA6629F-095SG      0.5 HP (5200 RPM)
Straight Type Air Drill
w/ Off Set 95mm Angle Head

SA6628A-095SG      0.5 HP (600 RPM)
SA6628B-095SG      0.5 HP (1000 RPM)
SA6628C-095SG      0.5 HP (2400 RPM)
SA6628D-095SG      0.5 HP (3200 RPM)
SA6628E-095SG      0.5 HP (3800 RPM)
SA6628F-095SG      0.5 HP (5200 RPM)
Straight Type Air Drill
w/ Off Set 95mm Angle Head Extended

SA6629A-129SG      0.5 HP (600 RPM)
SA6629B-129SG      0.5 HP (1000 RPM)
SA6629C-129SG      0.5 HP (2400 RPM)
SA6629D-129SG      0.5 HP (3200 RPM)
SA6629E-129SG      0.5 HP (3800 RPM)
SA6629F-129SG      0.5 HP (5200 RPM)
Straight Type Air Drill
w/ Off Set 129mm Angle Head

SA6629A-129LSG      0.5 HP (600 RPM)
SA6629B-129LSG      0.5 HP (1000 RPM)
SA6629C-129LSG      0.5 HP (2400 RPM)
SA6629D-129LSG      0.5 HP (3200 RPM)
SA6629E-129LSG      0.5 HP (3800 RPM)
SA6629F-129LSG      0.5 HP (5200 RPM)
Straight Type Air Drill
w/ Off Set 129mm Angle Head Extended

SA6629A-045AG      0.5 HP (600 RPM)
SA6629B-045AG      0.5 HP (1000 RPM)
SA6629C-045AG      0.5 HP (2400 RPM)
SA6629D-045AG      0.5 HP (3200 RPM)
SA6629E-045AG      0.5 HP (3800 RPM)
SA6629F-045AG      0.5 HP (5200 RPM)
Straight Type Air Drill
w/ 45° Angle Head

SA6629A-045LAG      0.5 HP (600 RPM)
SA6629B-045LAG      0.5 HP (1000 RPM)
SA6629C-045LAG      0.5 HP (2400 RPM)
SA6629D-045LAG      0.5 HP (3200 RPM)
SA6629E-045LAG      0.5 HP (3800 RPM)
SA6629F-045LAG      0.5 HP (5200 RPM)
Straight Type Air Drill
w/ 45° Angle Head Extended

SA6629A-090AG      0.5 HP (600 RPM)
SA6629B-090AG      0.5 HP (1000 RPM)
SA6629C-090AG      0.5 HP (2400 RPM)
SA6629D-090AG      0.5 HP (3200 RPM)
SA6629E-090AG      0.5 HP (3800 RPM)
SA6629F-090AG      0.5 HP (5200 RPM)
Straight Type Air Drill
w/ 90° Angle Head

SA6629A-090LAG      0.5 HP (600 RPM)
SA6629B-090LAG      0.5 HP (1000 RPM)
SA6629C-090LAG      0.5 HP (2400 RPM)
SA6629D-090LAG      0.5 HP (3200 RPM)
SA6629E-090LAG      0.5 HP (3800 RPM)
SA6629F-090LAG      0.5 HP (5200 RPM)
Straight Type Air Drill
w/ 90° Angle Head  Extended

SA6629A-360AG      0.5 HP (600 RPM)
SA6629B-360AG      0.5 HP (1000 RPM)
SA6629C-360AG      0.5 HP (2400 RPM)
SA6629D-360AG      0.5 HP (3200 RPM)
SA6629E-360AG      0.5 HP (3800 RPM)
SA6629F-360AG      0.5 HP (5200 RPM)
Straight Type Air Drill
w/ 360° Angle Head

SA6629A-360LAG      0.5 HP (600 RPM)
SA6629B-360LAG      0.5 HP (1000 RPM)
SA6629C-360LAG      0.5 HP (2400 RPM)
SA6629D-360LAG      0.5 HP (3200 RPM)
SA6629E-360LAG      0.5 HP (3800 RPM)
SA6629F-360LAG      0.5 HP (5200 RPM)
Straight Type Air Drill
w/ 360° Angle Head Extended

SA6629A-90HAG      0.5 HP (600 RPM)
SA6629B-90HAG      0.5 HP (1000 RPM)
SA6629C-90HAG      0.5 HP (2400 RPM)
SA6629D-90HAG      0.5 HP (3200 RPM)
SA6629E-90HAG      0.5 HP (3800 RPM)
SA6629F-90HAG      0.5 HP (5200 RPM)
Straight Type Air Drill
w/ 90° Heavy Angle Head

SA6629A-90LHAG      0.5 HP (600 RPM)
SA6629B-90LHAG      0.5 HP (1000 RPM)
SA6629C-90LHAG      0.5 HP (2400 RPM)
SA6629D-90LHAG      0.5 HP (3200 RPM)
SA6629E-90LHAG      0.5 HP (3800 RPM)
SA6629F-90LHAG      0.5HP (5200 RPM)
Straight Type Air Drill
w/ 90° Heavy Angle Head Extended

Model No.

Horse
Power

Free
Speed

Air Inlet

Net Weight
(without Head)

Overall Length
(without Head)

Air Cons.

Hose
Size

Sound
Level

馬力

無負載
轉速

進氣口

重量

長度

耗氣量

氣管

嗓音值

HP

W

R.P.M

NPT(PT)

lb

kg

Inch

mm

CFM

L/min

Inch

mm

dBA

SA6629A

0.5

373

600

1/4"-18

0.61

0.28

5.98

152

3.08

87.16

3/8

10

84

SA6629B

0.5

373

1,000

SA6629C

0.5

373

2,400

SA6629D

0.5

373

3,200

SA6629E

0.5

373

3,800

SA6629F

0.5

373

5,200
