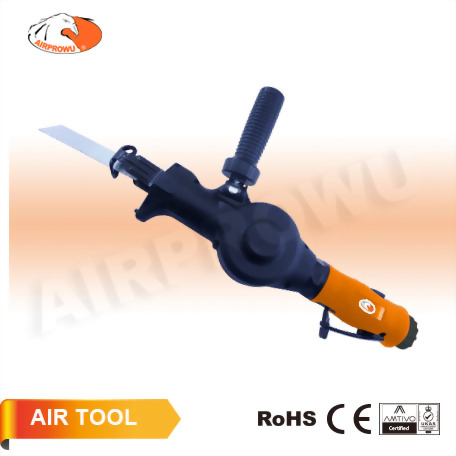

2 in 1 Air Body Saw w/ 2pc 14T & 18T Saw Blade
2 in 1 Air Body Saw
w/ 2pc 14T & 18T Saw Blade
● Can cut 3-25mm thick mild steel and steel pipe of diameter 80mm (3.1").

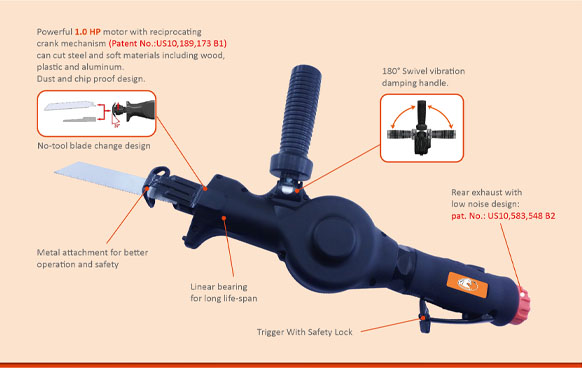

● Powerful 1.0 HP motor with reciprocating crank mechanism can cut steel and
soft materials including wood, plastic and aluminum.
● 1.2" (30mm) / 1.26"(32mm) stroke for fast and efficient cutting.
● 180° swivel vibration damping handle.
● Suitable for various brands of saw blades on the market.
2 in 1 Air Body Saw
w/ 2pc 14T & 18T Saw Blade
Contents
● 1PC 14T Saw Blades (SA8289A-B14T)
● 1PC 18T Saw Blades (SA8289A-B18T)
Optional Accessories

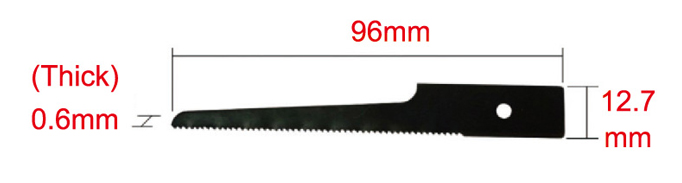

SA8289A-B14T 14T Saw Blade
SA8289A-B18T 18T Saw Blade
SA8289A-B24T 24T Saw Blade
6" Air Saw Blade
● Plate/ Pipe Thick: 4.0 mm (14T), 2.1~4.0 mm (18T), 1.6~3.1 mm (24T)
● Pipe Dia.: 50 mm
● Pipe Thick: 2~5 mm (14T), 1.5~4 mm (18T), 0.5~3 mm (24T)
SA8289A-S14T 14T Saw Blade
SA8289A-S18T 18T Saw Blade
SA8289A-S24T 24T Saw Blade
Bi-Metal Scroll Air Saw Blades (5pcs/ pack)
● Plate/ Pipe Thick: 4.0 mm (14T), 2.1~4.0 mm (18T), 1.6~3.1 mm (24T)
● Pipe Dia.: 30 mm
● Pipe Thick: 2~5 mm (14T), 1.5~4 mm (18T), 0.5~3 mm (24T)
|
Model No. |
Stroke |
Blows |
Air Cons. |
Air |
Air |
Overall |
Net |
Hose |
|||||
|
行程 |
打擊次數 |
耗氣量 |
進氣口 |
空氣壓力 |
長度 |
重量 |
氣管尺寸 |
||||||
|
mm |
SPM |
CFM |
L/min |
NPT |
psi |
bar |
Inch |
mm |
lb |
kg |
Inch |
mm |
|
|
SA8289A |
30 |
2,400 |
4.1 |
116 |
1/4" |
90 |
6.2 |
15.6 |
395 |
4.84 |
2.2 |
3/8 |
10 |
2 in 1 Air Body Saw
w/ 2pc 14T & 18T Saw Blade
