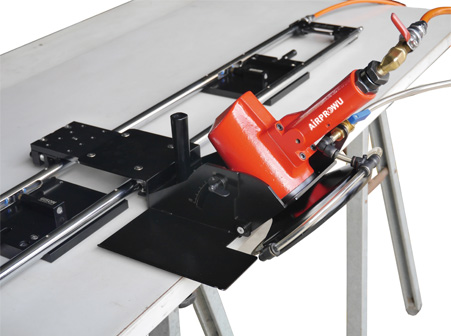

7" Wet Air Cutting Saw Kit w/o Cutting Blade
7" Wet Air Cutting Saw Kit (4 PCS)
w/o Cutting Blade
● Max Speed : 9000 RPM
● Saw Blade Drill : Dia. 22.2 mm
● Noise Level: 83 dBA
● Cutting Depth for 45 & 90 Degree
(max) : 30 mm
● Vibration : <2.5 m/sec2
● Spindle Thread: 5/8"-11
7" Wet Air Cutting Saw Kit (4 PCS)
w/o Cutting Blade
Contents:
● 1PC SA85104 7" Wet Air Cutting Saw
● 1PC Linear Sliding Track with
Vacuum Suction Fixing
Base (1.2M) ACC-LTS120
● 1PC Sliding Block ACC-SB238
● 1PC Extension Fixed Plate ACC-FP006
● Packing:
3pcs (SA85104, ACC-SB238, ACC-FP006) /CTN/ N.W 8.5kg/ G.W 10/ 1.36cuft
● Packing:
2pcs (ACC-LTS120) /CTN/ N.W 13.2kg/ G.W 14/ 1.97cuft
|
Model No. |
Pad |
Free |
Net |
Overall |
Air Inlet |
Air |
Air Cons. |
Hose |
||||||
|
底盤尺寸 |
無負載轉速 |
重量 |
長度 |
進氣口 |
空氣壓力 |
耗氣量 |
氣管 |
|||||||
|
Inch |
mm |
R.P.M |
lb |
kg |
Inch |
mm |
NPT(PT) |
psi |
bar |
CFM |
l/min |
Inch |
mm |
|
|
SA85104 |
7 |
178 |
9,000 |
15.26 |
6.92 |
11.81 |
300 |
1/4" |
90 |
6.2 |
22.6 |
640 |
1/2 |
13 |

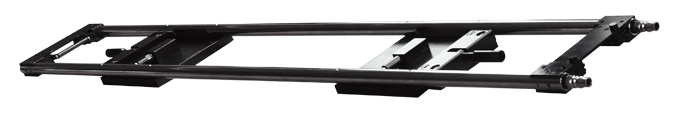

ACC-LTS120
Linear Sliding Track with Vacuum Suction Fixing Base (1.2M)
● Linear Motion Guide
● Length : 1235 mm (48.62")
● Width : 155 mm (6.1")
● Height : 40 mm (1.57")
● Net Weight : 5.9 kgs (13.01 lb)
● Air Cons. : 0.11 m3/min
● Air Inlet : 1/4"
● Hose Size (I.D.) : 6.5 mm
● Air Pressure : 6.3 kgf/cm2 (90 psi)
● Packing (1 Carton) : 3 pcs/2.1 cu-ft/G.W.:22 kgs
ACC-SB238
Sliding Block
● Length : 270 mm (10.63")
● Width : 100 mm (3.94")
● Height : 50 mm (1.97")
● Weight : 1.4 kgs (3.09 lb)
● Packing :17kg

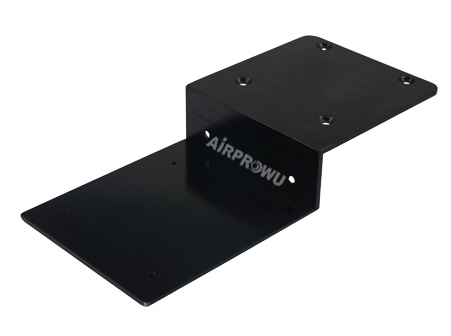

ACC-FP006
Extension Fixed Plate
