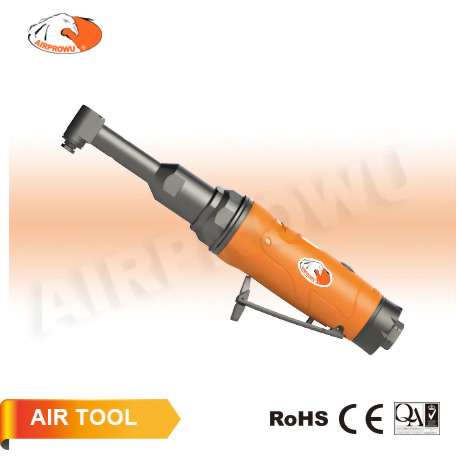

90° Air Angle Drill (0.5HP) Collet Type
90° Air Angle Drill (0.5HP)
w/ Collet

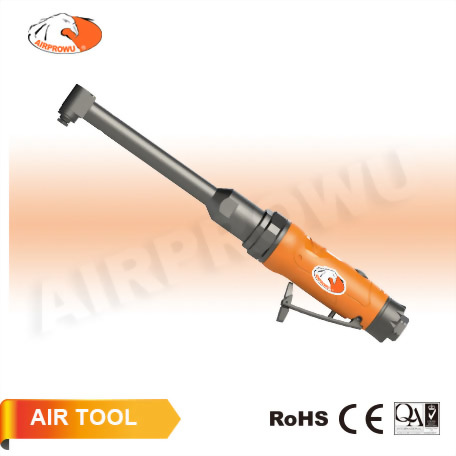

SA6615L Aircraft Tool
90° Extended Air Angle Drill (0.5HP)
w/ Collet
● Free Speed: 3,600 RPM
● Horse Power: 0.5 HP (373W)
● Adjust Side Exhaust

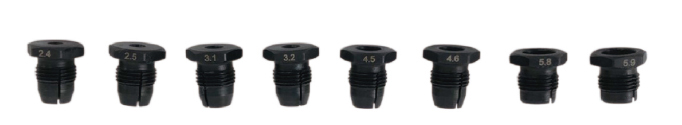

Collet For Optional:
|
Item No. |
Collet Size |
|
mm |
|
|
AC-15MA |
1.5 |
|
AC-20MA |
2.0 |
|
AC-22MA |
2.2 |
|
AC-24MA |
2.4 |
|
AC-25MA |
2.5 |
|
AC-30MA |
3.0 |
|
AC-31MA |
3.1 |
|
AC-32MA |
3.2 |
|
AC-38MA |
3.8 |
|
AC-40MA |
4.0 |
|
AC-45MA |
4.5 |
|
AC-46MA |
4.6 |
|
AC-48MA |
4.8 |
|
AC-50MA |
5.0 |
|
AC-52MA |
5.2 |
|
AC-58MA |
5.8 |
|
AC-59MA |
5.9 |
|
Item No. |
Collet Size |
|
Inch |
|
|
AC-332A |
3/32" |
|
AC-18A |
1/8" |
|
AC-532A |
5/32" |
|
AC-316A |
3/16" |

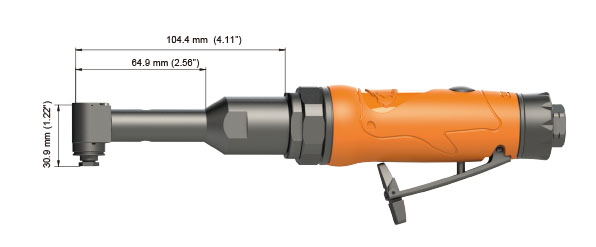

90° Air Angle Drill (0.5HP)
w/ Collet
SA6615L Aircraft Tool

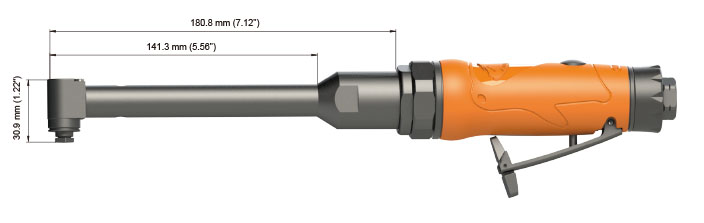

90° Extended Air Angle Drill (0.5HP)
w/ Collet
|
Model No. |
Collet |
Horse |
Free |
Air |
Net |
Overall |
Air |
Sound |
Vibration |
||||
|
夾頭能力 |
馬力 |
無負載轉速 |
進氣口 |
重量 |
長度 |
耗氣量 |
噪音值 |
震動值 |
|||||
|
mm |
HP |
W |
R.P.M |
NPT(PT) |
lb |
kg |
Inch |
mm |
CFM |
L/min |
dB(A) |
m/s2 |
|
|
SA6615 |
2.4 - 5.9 |
0.5 |
373 |
3,600 |
1/4" |
1.9 |
0.86 |
10.24 |
259 |
3.5 |
99 |
82.0 |
<2.5 |
|
SA6615L |
2.4 - 5.9 |
0.5 |
373 |
3,600 |
1/4" |
2.2 |
1.00 |
12.88 |
327 |
3.5 |
99 |
82.0 |
<2.5 |
