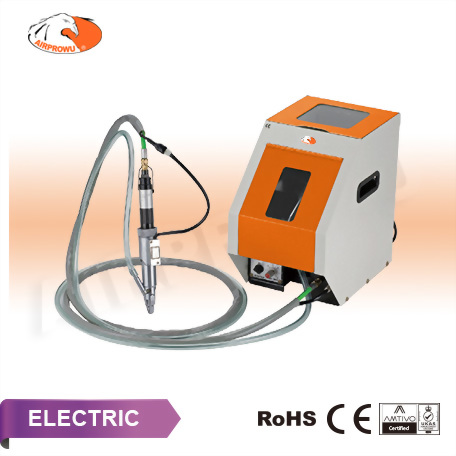

Automatic Screw Feeder / Push Type
Automatic Screw Feeder / Push Type
● Easy-to-use Compact Construction:
By adopting the highly reliable Blade Hopper design,
it is a handy and dependable device,
a product of years of continuous improvement.
● Reinforced Screw Locking Quality:
The Pneumatic / Electric torque-controlled screwdriver of the famous
brand in Taiwan is used. Furthermore, the applicable pneumatic/Electric
torque screwdriver will be used according to the customer's work piece
locking torque requirements to achieve consistent fastening quality.
● Remarkable Operation Efficiency Improvement:
Just like an ordinary screwdriver, the automatic screw is operated with
only one hand, and achieves an operating speed of 20-30 screws per
minute. It saves you the effort of picking up, moving and positioning the screws.
● The highly reliable supply type:
By our company manufacture the unique Shoot rail, supply the kinds of screws.
● Customization and Stability:
The stability of screw conveyance and the locking will be remarkably
enhanced for the custom-made screws. The Automatic Screw Feed
System is customized for your fasteners and specific application.
Automatic Screw Feeder / Push Type
● Air Pressure: 5.5 kg/cm² ; 5.39 Bar ; 85 PSI
● Net Weight / Gross Weight: 23 kg / 31 kg
● Torque: Refer to Screwdriver Capacity
● Volumn: M3 x 15 2000PCS
● Optional Accessory: Extension Hopper (SC30-EH)
|
Model No. |
Adjustable Track |
Power Source |
Capacity |
Size |
Weight |
Suitable Screw Type |
|
|
可調軌道 |
電源 |
數量 |
尺寸 |
重量 |
適用螺絲類型 |
||
|
mm |
V(AC) |
PCS/Min |
mm |
kg |
- |
||
|
SC30 |
M2.3 - M6 |
220, 50Hz |
30 |

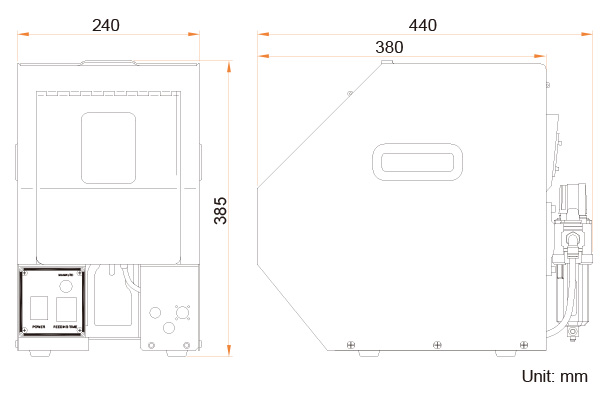

440 x 240 x 385 |
23 |
Screw: Philips Type |
|
|
Screw |
Min. H |
Max. L |
Screw Thread |
|
|
mm |
mm |
mm |
mm |
|
|
5 |
8 |
22 |
2.5 - 6 |
|
|
6 |
9 |
22 |
||
|
7 |
10 |
22 |
||
|
8 |
11 |
22 |
||
|
9 |
12 |
22 |
||
|
10 |
13 |
22 |
||
|
11 |
15 |
22 |
||
|
12 |
16 |
22 |
