● Capacity: 10 - 100 Tons
● Stroke: 38 - 62 mm
● Max. Working Pressure: 700 bar / 10,000 psi
● All cylinders are single acting with spring return.
● Pistons hard chromed.
● Cylinders inside roll-polished.
● Cylinders outside blasted with black nitriding finish.

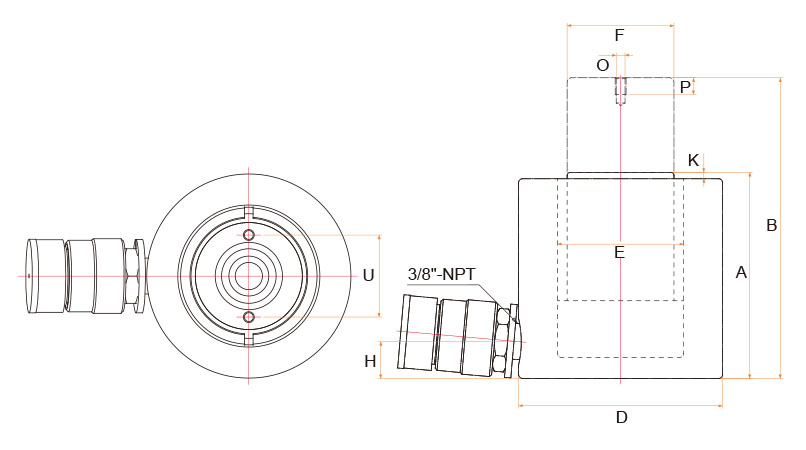

SCS Series, Compact Cylinders
|
ITEM NO |
Capacity |
Stroke |
Oil Cap |
A |
B |
D |
E |
F |
H |
K |
O |
P |
U |
Weight |
|
Height (mm) |
||||||||||||||
|
Retracted |
Extended |
|||||||||||||
|
SCS101 |
10 |
38 |
55 |
88 |
126 |
78 |
42.8 |
38 |
17.5 |
5 |
M4 |
8 |
26 |
4.1 |
|
SCS201 |
20 |
45 |
127 |
98 |
143 |
97 |
60 |
50.8 |
17.5 |
3 |
M5 |
9 |
39 |
5 |
|
SCS302 |
30 |
62 |
274 |
117 |
179 |
107 |
75 |
63.5 |
19 |
3 |
M5 |
8 |
39 |
6.8 |
|
SCS502 |
50 |
60.5 |
429 |
127 |
187.5 |
127 |
95 |
70 |
19 |
2 |
M5 |
8 |
39 |
10.9 |
|
SCS1002 |
100 |
58 |
830 |
146.5 |
204.5 |
165 |
135 |
92 |
25 |
1.5 |
M8 |
10 |
55 |
22.7 |
