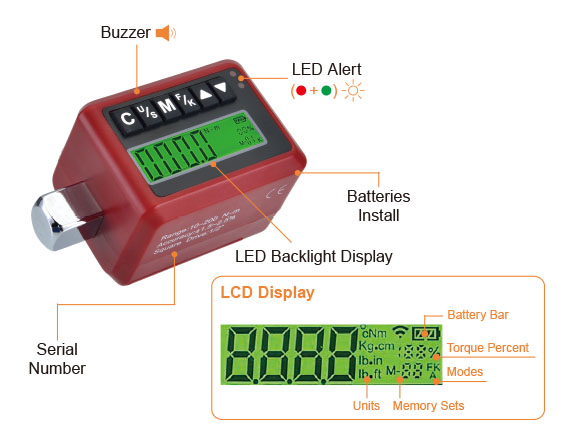

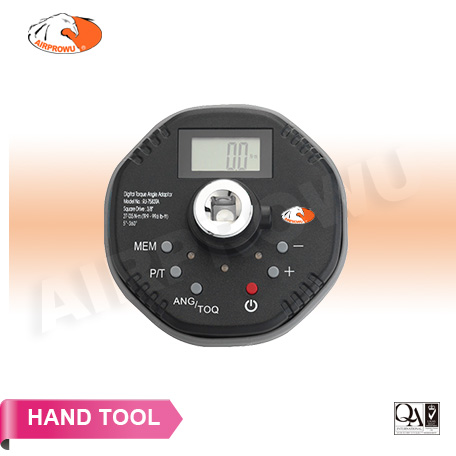

Digital Angle Torque Adapter
Digital Angle Torque Adapter
Digital Angle Torque Adapter
● Accuracy: CW: ±1.5% ; CCW: ±2.5%
● Angle Accuracy: ±2°
● Min. Angle: 0.1° ; Max. Angle: 720° ; Setting Range: 0.1° - 720°
● Units: Nm, Kg.cm, lb-in, lb-ft
● Operating Temperature: -10°C - 60°C
● Storage Temperature: -20°C - 70°C
● Humidity: Up to 90% non-condensing
● Battery Type: AAA x 2
● Battery Life(standard mode): 1 year
● Battery Life(continuous operation): 37 hrs.
● Drop Test: 1m
● Shaking Test: 10G
● Service life test: 10000 cycles
● Environmental test: PASS
● EMC test: PASS
|
ITEM NO. |
Square |
Max. |
Setting Range |
Min. |
Max. Torque Load/ |
Adapter Size |
Weight |
|
Nm |
Nm |
Nm / Degrees |
Nm |
mm |
g |
||
|
DTA-SHTSA60-1 |
3/8" |
60 |
3 - 60 |
0.01 / 0.1° |
306 / 202 |
75 x 50 x 39 |
180±5 |
|
DTA-SHTSA135-1 |
3/8" |
135 |
6.8 - 135 |
0.1 / 0.1° |
306 / 202 |
75 x 50 x 39 |
180±5 |
|
DTA-SHTSA200-2 |
1/2" |
200 |
10 - 200 |
0.1 / 0.1° |
796 / 512 |
75 x 50 x 39 |
190±5 |
|
DTA-SHTSA340-2 |
1/2" |
340 |
17 - 340 |
0.1 / 0.1° |
796 / 512 |
75 x 50 x 39 |
190±5 |
