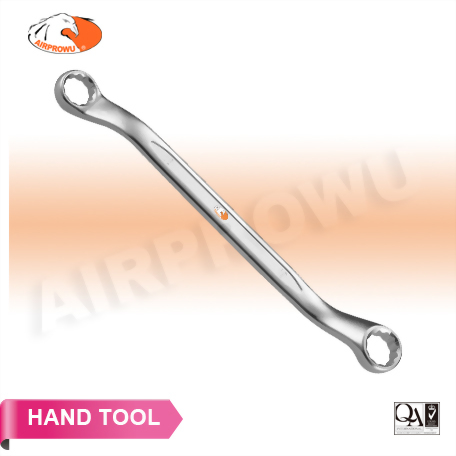

Double Ring Wrench 45°
Double Ring Wrench 45°
Double Ring Wrench 45°
● Material: CR-V 6135 (HRC 42-48°)
● Surface: Matt
|
ITEM NO. |
Size |
C |
B |
Length |
Torque |
|
|
Range C |
Range B |
|||||
|
mm |
mm |
mm |
mm |
N.M |
N.M |
|
|
W015-P0810 |
8 x 10 |
8 |
10 |
170 |
33.81 |
55.94 |
|
W015-P1213 |
12 x 13 |
12 |
13 |
198 |
87.91 |
104.86 |
|
W015-P1415 |
14 x 15 |
14 |
15 |
232 |
125.44 |
147 |
|
W015-P1617 |
16 x 17 |
16 |
17 |
237 |
171.5 |
196.98 |
|
W015-P1819 |
18 x 19 |
18 |
19 |
270 |
225.4 |
255.78 |
|
ITEM NO. |
Size |
C |
B |
Length |
Torque |
|
|
Range C |
Range B |
|||||
|
Inch |
Inch |
Inch |
mm |
N.M |
N.M |
|
|
W015A-14932 |
1/4" x 9/32" |
1/4" |
9/32" |
165 |
17.25 |
24.7 |
|
W015A-5161132 |
5/16" x 11/32" |
5/16" |
11/32" |
170 |
33.81 |
44.49 |
|
W015A-38716 |
3/8" x 7/16" |
3/8" |
7/16" |
180 |
56.94 |
71.25 |
|
W015A-153212 |
15/32" x 1/2" |
15/32" |
1/2" |
206 |
87.91 |
104.86 |
|
W015A-91658 |
9/16" x 5/8" |
9/16" |
5/8" |
232 |
125.44 |
147 |
|
W015A-111634 |
11/16" x 3/4" |
11/16" |
3/4" |
270 |
225.4 |
255.78 |
