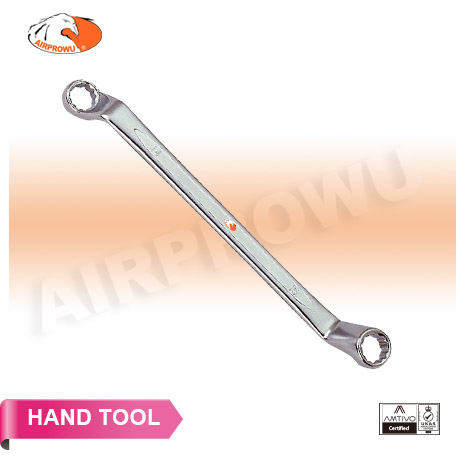

Double Ring Wrench
W032 Series SAE
Double Ring Wrench
● Chrome Vanadium Mat Finished/mirror Finished
● Meet Din 838 Standard
|

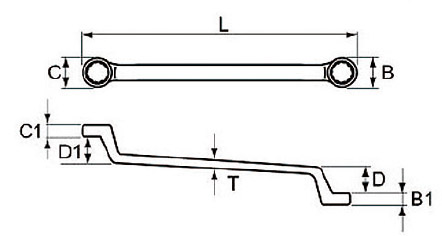

ITEM NO. |
Size |
C |
B |
C1 |
B1 |
D |
D1 |
T |
L |
WT |
||
|
For MM |
For SAE |
mm |
Inch |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
g |
|
W0310607 |
- |
6x7 |
- |
12.2 |
10.7 |
6.5 |
6.0 |
2.2 |
2.2 |
4.1 |
168 |
45 |
|
W0310608 |
W0320608 |
6x8 |
1/4"x5/16" |
12.2 |
10.7 |
6.5 |
6.0 |
2.2 |
2.3 |
4.1 |
168 |
45 |
|
W0310809 |
- |
8x9 |
- |
15.1 |
13.6 |
7.5 |
7.0 |
2.3 |
2.3 |
4.5 |
183 |
60 |
|
W0310810 |
W0320810 |
8x10 |
5/16"x3/8" |
15.1 |
13.6 |
7.5 |
7.0 |
2.3 |
2.4 |
4.5 |
183 |
60 |
|
W0311011 |
W0321011 |
10x11 |
3/8"x7/16" |
18.0 |
16.6 |
9.0 |
8.0 |
2.4 |
2.5 |
4.9 |
198 |
90 |
|
W0311012 |
- |
10x12 |
- |
18.0 |
16.6 |
9.0 |
8.0 |
2.4 |
2.7 |
4.9 |
198 |
90 |
|
W0311113 |
W0321113 |
11x13 |
7/16"x1/2" |
20.9 |
19.5 |
9.5 |
9.0 |
2.5 |
2.8 |
5.4 |
217 |
118 |
|
W0311213 |
- |
12x13 |
- |
20.9 |
19.5 |
9.5 |
9.0 |
2.7 |
2.8 |
5.4 |
217 |
118 |
|
W0311214 |
- |
12x14 |
- |
20.9 |
19.5 |
9.5 |
9.0 |
2.7 |
2.9 |
5.4 |
217 |
118 |
|
W0311314 |
W0321314 |
13x14 |
1/2"x9/16" |
20.9 |
19.5 |
9.5 |
9.0 |
2.8 |
2.9 |
5.4 |
217 |
118 |
|
W0311415 |
- |
14x15 |
- |
23.7 |
22.4 |
10.5 |
10.0 |
2.9 |
2.9 |
5.7 |
239 |
160 |
|
- |
W0321416 |
- |
9/16"x5/8" |
23.7 |
22.4 |
10.5 |
10.0 |
2.9 |
3.0 |
5.7 |
239 |
160 |
|
W0311417 |
- |
14x17 |
- |
26.7 |
22.4 |
11.3 |
10.0 |
2.9 |
3.1 |
5.7 |
260 |
160 |
|
- |
W0321517 |
- |
19/32"x11/16" |
26.7 |
25.3 |
11.3 |
11.0 |
3.0 |
3.1 |
6.2 |
260 |
185 |
|
W0311617 |
W0321617 |
16x17 |
5/8"x11/16" |
26.7 |
25.3 |
11.3 |
11.0 |
3.0 |
3.1 |
6.2 |
260 |
185 |
|
W0311719 |
W0321719 |
17x19 |
11/16"x3/4" |
29.7 |
28.2 |
11.9 |
11.6 |
3.1 |
3.3 |
6.6 |
292 |
210 |
|
W0311819 |
- |
18x19 |
- |
29.7 |
28.2 |
11.9 |
11.6 |
3.2 |
3.3 |
6.6 |
292 |
210 |
|
W0311922 |
- |
19x22 |
- |
34.0 |
31.1 |
12.9 |
12.2 |
3.3 |
3.6 |
7.1 |
318 |
320 |
|
W0312022 |
- |
20x22 |
- |
34.0 |
31.1 |
12.9 |
12.2 |
3.5 |
3.6 |
7.1 |
318 |
320 |
|
- |
W0322122 |
- |
13/16"x7/8" |
34.0 |
31.1 |
12.9 |
12.2 |
3.5 |
3.6 |
7.1 |
318 |
320 |
|
W0312123 |
- |
21x23 |
- |
36.9 |
34.0 |
13.2 |
12.5 |
3.5 |
3.6 |
7.6 |
330 |
390 |
|
W0312224 |
W0322224 |
22x24 |
7/8"x15/16" |
36.9 |
34.0 |
13.2 |
12.5 |
3.6 |
3.6 |
7.6 |
330 |
390 |
|
W0312326 |
- |
23x26 |
- |
41.4 |
36.9 |
14.4 |
13.5 |
3.6 |
3.7 |
8.1 |
345 |
500 |
|
W0312426 |
W0322426 |
24x26 |
15/16"x1" |
41.4 |
36.9 |
14.4 |
13.5 |
3.6 |
3.7 |
8.1 |
345 |
500 |
|
W0312427 |
- |
24x27 |
- |
41.4 |
36.9 |
14.4 |
13.5 |
3.6 |
3.8 |
8.1 |
345 |
500 |
|
W0312528 |
- |
25x28 |
- |
43.8 |
40.4 |
14.7 |
13.8 |
3.7 |
3.9 |
8.5 |
355 |
520 |
|
- |
W0322629 |
- |
1"x1-1/8" |
43.8 |
40.4 |
14.7 |
13.8 |
3.7 |
3.9 |
8.5 |
355 |
520 |
|
W0313032 |
W0323032 |
30x32 |
1-1/8"x1-1/4" |
48.5 |
45.5 |
16.0 |
15.4 |
4.0 |
4.0 |
9.0 |
370 |
670 |
