14 PCS Air Hydraulic Rivet Nut Tool Kit
M4-M12
#8-32~#1/2-13
#8-32~#1/2-13
модель :
SA89113MK/ SA89113K
SA89113MK Metric Size (M4~M12)
SA89113K Inch Size(#8-32~#1/2-13)
14 PCS Air Hydraulic Rivet Nut Tool Kit
● Rivet Capacity: M4, M5,M6, M8, M10, M12
(#8-32, #10-24, #1/4"-20, #5/16-18,#3/8-16, #1/2"-13 )

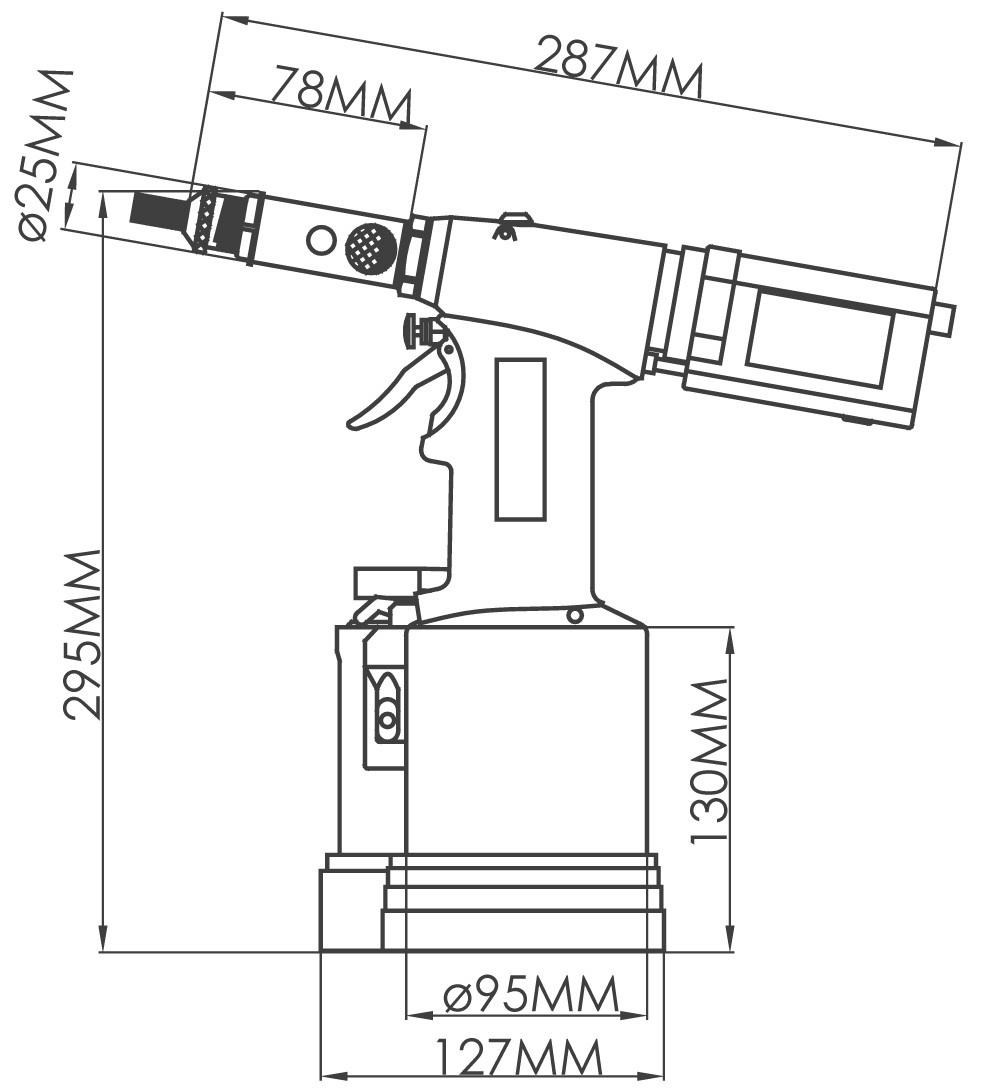

● Height: 295 mm (11.61")
● Hose Size: 3/8"(9.5 mm)
● Working Stroke: Variable Adjustment (0-7mm)
SA89113K Inch Size(#8-32~#1/2-13)
14 PCS Air Hydraulic Rivet Nut Tool Kit
● Rivet Capacity: M4, M5,M6, M8, M10, M12
(#8-32, #10-24, #1/4"-20, #5/16-18,#3/8-16, #1/2"-13 )
● Height: 295 mm (11.61")
● Hose Size: 3/8"(9.5 mm)
● Working Stroke: Variable Adjustment (0-7mm)
SA89113MK Metric Size (M4~M12)
SA89113K Inch Size(#8-32~#1/2-13)
14 PCS Air Hydraulic Rivet Nut Tool Kit
Contents
● 1PCS SA89113M/ SA89113
● 6PCS M4, M5, M6, M8, M10, M12 (or)
#8-32, #10-24, #1/4"-20, #5/16-18,
#3/8-16, #1/2"-13
● 1PCS Spanner
● 1PCS Hex Wrench
● 1PCS Handing Ring
● 1PCS Oil Syringe
● 1PCS Pin
● 1PCS Univeral Joint
● 1PCS Blow Moldd Case
● Packing: 4 Set/21.5kg/ 23kg/3.17'
SA89113K Inch Size(#8-32~#1/2-13)
14 PCS Air Hydraulic Rivet Nut Tool Kit
Contents
● 1PCS SA89113M/ SA89113
● 6PCS M4, M5, M6, M8, M10, M12 (or)
#8-32, #10-24, #1/4"-20, #5/16-18,
#3/8-16, #1/2"-13
● 1PCS Spanner
● 1PCS Hex Wrench
● 1PCS Handing Ring
● 1PCS Oil Syringe
● 1PCS Pin
● 1PCS Univeral Joint
● 1PCS Blow Moldd Case
● Packing: 4 Set/21.5kg/ 23kg/3.17'
|
Model No. |
Rivet Capacity |
Traction |
Stroke |
Net |
Air |
Air |
|||||
|
拉釘規格 |
拉力 |
行程 |
重量 |
進氣口 |
空氣壓力 |
||||||
|
Inch |
mm |
lb.f |
kg.f |
inch |
mm |
lb |
kg |
NPT(PT) |
psi |
bar |
|
|
SA89113 (M) |
#8-32, #10-24, #1/4"-20, #5/16-18,#3/8-16, #1/2"-13 |
M4, M5, M6, |
6,600 |
3,000 |
11.30 |
287 |
6.50 |
3.00 |
1/4" |
60 - 110 |
4.2-7.6 |
SA89113MK Metric Size (M4~M12)
SA89113K Inch Size(#8-32~#1/2-13)
14 PCS Air Hydraulic Rivet Nut Tool Kit
● Semi-automatic Spin-Pull Technology
● High pull forces required to place large diameter inserts.
● Quick cycle times, 2.0 seconds on average.
● Reduces wear on the drive screw resulting in lower maintenance and longer tool lifetime.
● Compact, Ergonomically designed tool.
● Stroke adjustment is quick and easy.
● Change thread sizes or adjust stroke is done outside of the tool.
SA89113K Inch Size(#8-32~#1/2-13)
14 PCS Air Hydraulic Rivet Nut Tool Kit
● Semi-automatic Spin-Pull Technology
● High pull forces required to place large diameter inserts.
● Quick cycle times, 2.0 seconds on average.
● Reduces wear on the drive screw resulting in lower maintenance and longer tool lifetime.
● Compact, Ergonomically designed tool.
● Stroke adjustment is quick and easy.
● Change thread sizes or adjust stroke is done outside of the tool.
