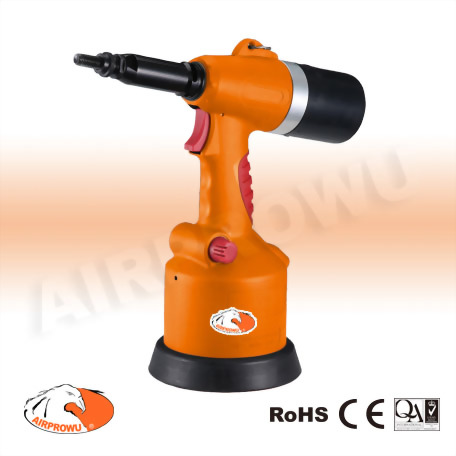

Air Hydraulic Rivet Nut Tools
модель :
SA8976AK
SA8976AK M3~M12
Air Hydraulic Riveting Nut Kit (17 PCS)
● Mandrels Size: M3,M4,M5,M6,M8,M10,M12
● Nut Material: Aluminum, Steel & Stainless
● Traction Power: 4565 lbs (2075 kgs)
● Work Capacity:
Up To M10 In All Material
Up To M12 In Al. & Steel Nuts
Air Hydraulic Riveting Nut Kit (17 PCS)
● Mandrels Size: M3,M4,M5,M6,M8,M10,M12
● Nut Material: Aluminum, Steel & Stainless
● Traction Power: 4565 lbs (2075 kgs)
● Work Capacity:
Up To M10 In All Material
Up To M12 In Al. & Steel Nuts
SA8976AK M3~M12
Air Hydraulic Riveting Nut Kit (17 PCS)
Contents
• 1PC SA8976A
• 7PCS Nose Head: M3, M4, M5, M6, M8, M10, M12
• 1PC Hex. Wrench
• 1PC Pin
• 3PCS Spanner
• 2PCS Touble Open End Wrenches
• 1PC Universal Joint
• 1PC Blow Molded Case
Air Hydraulic Riveting Nut Kit (17 PCS)
Contents
• 1PC SA8976A
• 7PCS Nose Head: M3, M4, M5, M6, M8, M10, M12
• 1PC Hex. Wrench
• 1PC Pin
• 3PCS Spanner
• 2PCS Touble Open End Wrenches
• 1PC Universal Joint
• 1PC Blow Molded Case
|
Model No. |
Rivet Capacity |
Traction |
Stroke |
Net |
Air |
Air |
|||||
|
拉釘規格 |
拉力 |
行程 |
重量 |
進氣口 |
空氣壓力 |
||||||
|
Inch |
mm |
lb.f |
kg.f |
inch |
mm |
lb |
kg |
NPT(PT) |
psi |
bar |
|
|
SA8976A |
#6-32,
#8-32,#10-24, |
M3,
M4, M5, |
4,565 |
2,075 |
0.24 |
6.0 |
5.2 |
2.4 |
1/8" |
75 - 100 |
5.2 - 6.9 |
