M4-M12 Air Hydraulic Riveter Nut Kit
модель :
SA89112M
SA89112M M4~M12
Air Hydraulic Riveter Nut Kit
● Setting Capacity: M4, M5, M6, M8, M10, M12
● Nut Material: Aluminum, Steel & Stainless
(Aluminum) M4, M10/ M5-M8,
(Steel) M4/ M5-M10,
(Stainless Steel) M4-M10
● Traction Power: 2300 kg (5000 lb)
● Length: 270 mm (10.63")
● Height: 290 mm (11.42")
● Work Capacity: Variable Adjustment: 1 ~ 8mm (Max. 8mm)
● Mini Hose: 3/8" (9.5 mm)
Air Hydraulic Riveter Nut Kit
● Setting Capacity: M4, M5, M6, M8, M10, M12
● Nut Material: Aluminum, Steel & Stainless
(Aluminum) M4, M10/ M5-M8,
(Steel) M4/ M5-M10,
(Stainless Steel) M4-M10
● Traction Power: 2300 kg (5000 lb)
● Length: 270 mm (10.63")
● Height: 290 mm (11.42")
● Work Capacity: Variable Adjustment: 1 ~ 8mm (Max. 8mm)
● Mini Hose: 3/8" (9.5 mm)
SA89112M M4~M12
Air Hydraulic Riveter Nut Kit
Air Hydraulic Riveter Nut Kit
|
Model No. |
Rivet Capacity |
Traction |
Stroke |
Net |
Air Inlet |
Air Pressure |
|||||
|
拉釘規格 |
拉力 |
行程 |
重量 |
進氣口 |
空氣壓力 |
||||||
|
Inch |
mm |
lb.f |
kg.f |
inch |
mm |
lb |
kg |
NPT(PT) |
psi |
bar |
|
|
SA89112M |
#8-32, #10-24, |
M4,M5, |
5,000 |
2,300 |
0.31 |
8 |
5.28 |
2.4 |
1/4" |
90 |
6.2 |
SA89112M M4~M12
Air Hydraulic Riveter Nut Kit

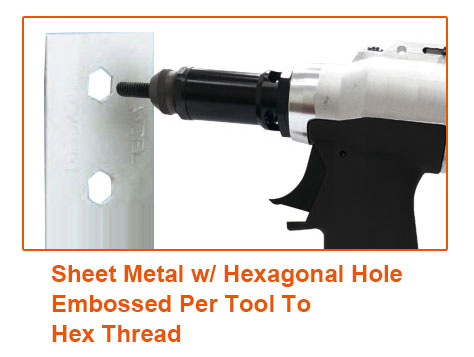

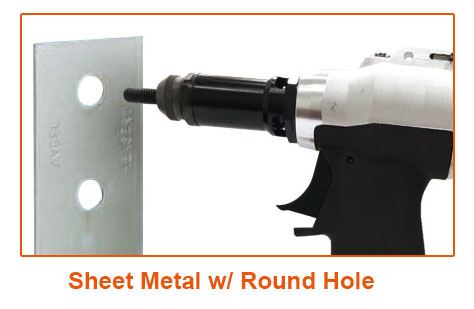

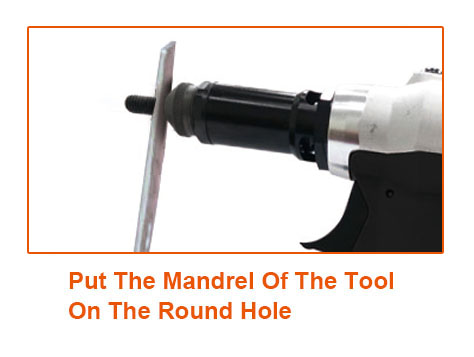

● Application
Air Hydraulic Riveter Nut Kit
● Application
